Introduction to AV Cable

In the world of audio and video connectivity, AV cables play a crucial role in ensuring seamless transmission of signals between devices. Whether you’re setting up a home theater system, gaming console, or professional audio-visual setup, understanding AV cable types and their applications is essential. In this comprehensive guide, we will explore various AV cables, their uses, and how to choose the best one for your needs.

What is an AV Cable?

AV cable, short for Audio-Visual cable, is a type of cable designed to transmit audio and video signals between electronic devices. These cables connect televisions, DVD players, gaming consoles, projectors, and sound systems, enabling clear communication between the devices. Depending on the signal quality and purpose, AV cables come in different formats and connectors.

Types of AV Cable

1. Composite AV Cable

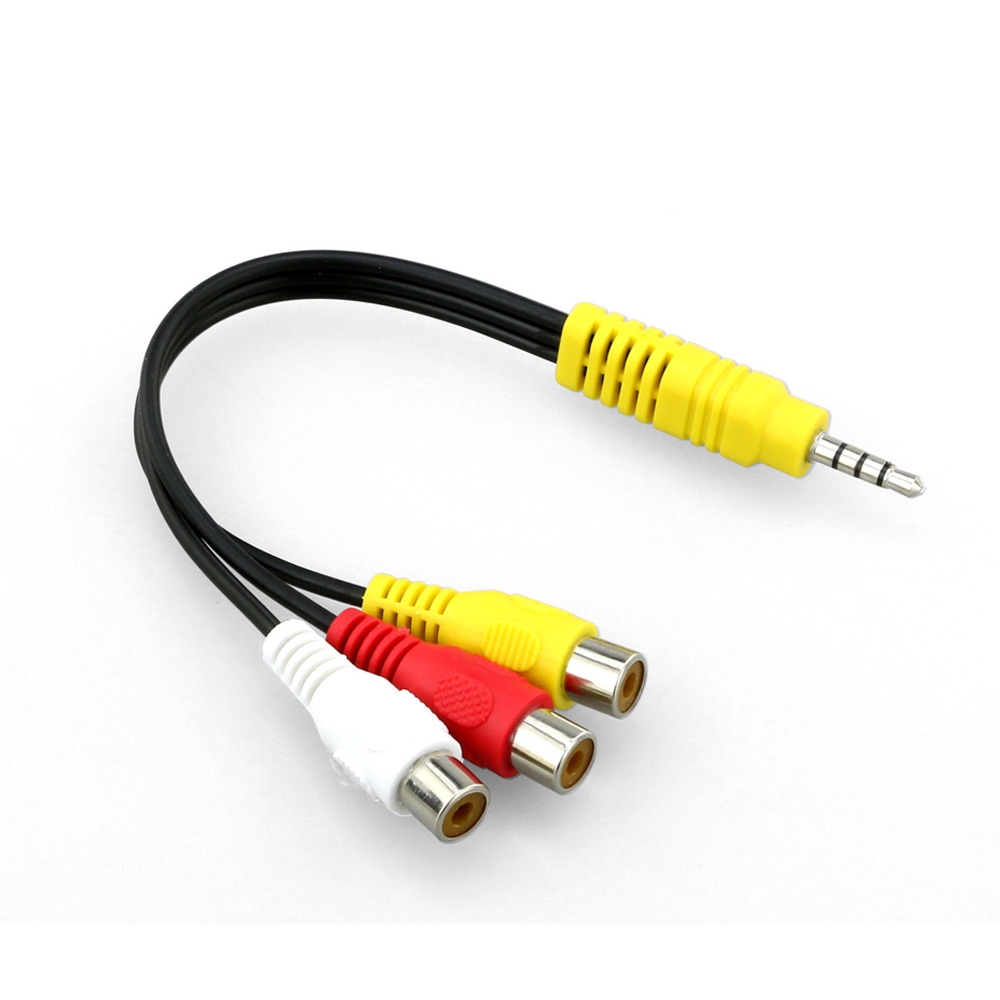

Composite AV cables are among the most common and traditional types of AV cable. They consist of three RCA connectors:

• Yellow (Video)
• Red (Right Audio Channel)
• White (Left Audio Channel)

While composite cables are still used in some older devices, they have limited resolution capabilities and do not support high-definition (HD) video.

2. Component AV Cable

Component AV cables improve upon composite cables by offering better video quality. These cables split the video signal into three separate components:

• Red (Pr) – Color information
• Green (Y) – Luminance (Brightness)
• Blue (Pb) – Color information

Component cables support HD resolutions up to 1080p, making them suitable for older gaming consoles, DVD players, and HDTVs.

3. S-Video Cable

S-Video (Super Video) cables separate the video signal into two channels: brightness (luminance) and color (chrominance). This results in better image quality compared to composite cables but falls short of the clarity offered by component cables.

4. HDMI Cable (High-Definition Multimedia Interface)

Although not traditionally referred to as an AV cable, HDMI cables have largely replaced composite and component cables in modern electronics. HDMI supports high-definition audio and video signals in a single cable, making it a more convenient and efficient option for connecting:

• Blu-ray players
• Gaming consoles
• Streaming devices
• Home theater systems

5. VGA Cable (Video Graphics Array)

VGA cables are used primarily for connecting computers and projectors. They carry only video signals, requiring a separate AV cable for audio transmission.

6. DVI Cable (Digital Visual Interface)

DVI cables support high-definition video transmission but do not carry audio signals. They are commonly used for connecting monitors, projectors, and some high-definition televisions.

How to Choose the Right AV Cable

Choosing the right AV cable depends on several factors, including the type of devices you want to connect, the quality of video and audio output required, and compatibility. Here are some essential considerations:

1. Device Compatibility

Ensure that the AV cable you choose is compatible with both your input and output devices. For example, if your TV has HDMI ports but your DVD player only supports composite cables, you may need an HDMI-to-composite adapter.

2. Video and Audio Quality

For the best audio-visual experience, opt for cables that support high-definition (HD) or ultra-high-definition (UHD) signals. HDMI cables are the preferred choice for modern home entertainment systems, while component AV cables offer a good alternative for older devices.

3. Cable Length and Durability

Choose an AV cable with the appropriate length for your setup. Avoid excessively long cables, as they may degrade signal quality. Additionally, look for cables with gold-plated connectors and sturdy shielding to prevent interference and enhance durability.

4. Price vs. Quality

While premium AV cables often boast better construction and durability, many mid-range cables offer comparable performance. Avoid overpriced cables that claim to enhance digital signals significantly, as digital signals either work or do not.

Common Uses of AV Cable

AV cables are used in various applications, including:

• Home Theater Systems – Connecting TVs, sound systems, and Blu-ray players.
• Gaming Consoles – PlayStation, Xbox, and Nintendo consoles require AV connections.
• Projectors – Schools, offices, and home theaters use AV cables to connect projectors.
• Surveillance Systems – Security cameras rely on AV cables for video transmission.

Maintaining and Troubleshooting AV Cables

To extend the lifespan of your AV cable and maintain optimal performance, follow these maintenance tips:

• Proper Storage: Avoid bending or twisting cables excessively.
• Regular Cleaning: Dust and dirt can affect signal quality.
• Check for Damage: Replace cables with frayed or broken connectors.
• Test Different Ports: If a cable isn’t working, try a different port or device.

Conclusion

AV cables remain an essential component in connecting and transmitting audio-visual signals between devices. While modern technology has introduced HDMI and wireless options, traditional AV cables like composite, component, and S-Video still play a role in many setups. By understanding the types, uses, and proper maintenance of AV cables, you can ensure the best possible audio-visual experience for your home entertainment or professional setup.

No matter the device or application, selecting the right AV cable is key to achieving high-quality video and audio transmission. Whether upgrading your home theater or setting up a professional AV system, choosing the best AV connection will make all the difference.
